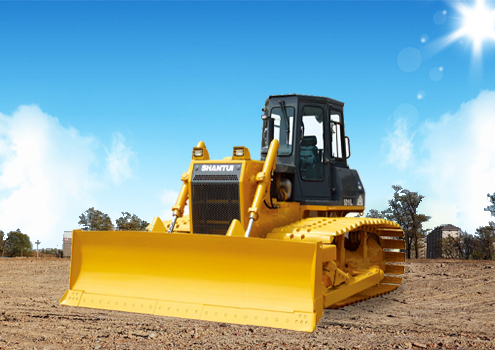

Bulldozer SD16

ITEM
UNIT
SD16
L×W×H (Ripper not included)
mm
5140×3388×3032
Operating weight (Ripper not included)
t
17
Engine
-
Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power
kW/rpm
120/1850
Gradeability
°
30
Blade type
-
Straight tilt blade U blade Angle blade
Blade width
mm
Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacity
m3
Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× drop below ground of blade
mm
540
Lift height of blade
mm
1095
Ripper type
-
Three-shank ripper
Ripping depth of ripper
mm
572
Lifting height of ripper
mm
592
Number of carriers (each side)
-
2
Number of track rollers (each side)
-
6
Number of track shoes (each side)
-
37
Width of track shoe
mm
510
Track gauge
mm
1880
Ground length and ground pressure
mm/MPa
2430-0.067
Pitch
mm
203.2
Forward speed
km/h
0-3.29
0-5.82
0-9.63
Reverse speed
km/h
0-4.28
0-7.59
0-12.53
