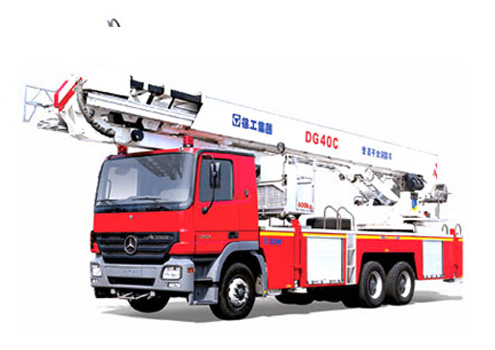

Germany Benz Actros3332 chassis; 4 telescopic booms and 1 folded boom structure; with the largest load of 400kg, the working platform reserves the escape channel, and rescue through multiple channels; equipped with reverse radar and integrated lubricating system, the machine can work on one side; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; the machine has 22 protecting devices.
DG40C Fire Truck Technical Specifications:
|
Main technical data in travel configuration
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
12400
|
|
Overall height
|
mm
|
3960
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
Axles 1 and 2
|
mm
|
4500
|
|
Axles 2 and 3
|
mm
|
1350
|
|
Tread
|
Front axle
|
mm
|
2035
|
|
Rear axle
|
mm
|
1804
|
|
Weight
|
Weight with full load
|
kg
|
28800
|
|
Axle load
|
Front axle
|
kg
|
7030
|
|
Dual rear axles
|
kg
|
21770
|
|
Travel performance
|
Max. travel speed
|
km/h
|
85
|
|
Min. turning diameter
|
m
|
≤19.3
|
|
Approach angle
|
°
|
16
|
|
Departure angle
|
°
|
10
|
|
Braking distance(at 30km/h)
|
m
|
≤9.5
|
|
Min. ground clearance
|
mm
|
290
|
|
Max. gradeability
|
%
|
≥28
|
|
Main technical data for operation
|
|
Main performance
|
Rated working height
|
m
|
40.5
|
|
Rated load
|
kg
|
400
|
|
Max. working radius
|
m
|
18
|
|
Outrigger span(longitudinal×lateral)
|
m
|
6.9×5.5
|
|
Elevating range
|
°
|
?3~80
|
|
Working speed
|
Boom deploying time
|
S
|
≤180
|
|
Outrigger extending time
|
S
|
≤30
|
|
Slewing speed
|
r/min
|
0~2
|
|
Fire-fighting performance
|
Water monitor rated flow
|
L/s
|
50
|
|
Water monitor rated pressure
|
MPa
|
≤1.0
|
|
Water monitor rated reach
|
m
|
≥65
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
