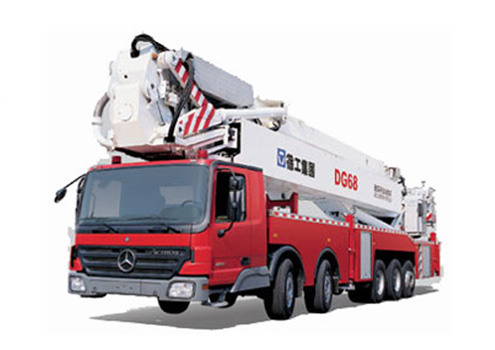

Germany Benz Axor5041 chassis of five-axle low type cab; 4 telescopic booms and 3 folded boom structure; with the largest load of 400kg, the working platform reserves the escape channel, and rescue through multiple channels; equipped with reverse radar and integrated lubricating system and constant-pressure controlled electro-hydraulic servo proportional control technology, the machine features high reliability and mobility; the machine has 25 protecting devices, fitting to rescuing and fire-fighting for high buildings.
DG68 Fire Truck Technical Specifications:
|
Main technical data in travel configuration
|
|
Category
|
Item
|
Unit
|
Parameter
|
|
Dimension
|
Overall length
|
mm
|
15060
|
|
Overall height
|
mm
|
4000
|
|
Overall width
|
mm
|
2500
|
|
Wheel base
|
Axles 1 and 2
|
mm
|
1700
|
|
Axles 2 and 3
|
mm
|
3400
|
|
Tread
|
Front axle
|
mm
|
1350
|
|
Rear axle
|
mm
|
1350
|
|
Weight
|
Weight with full load
|
kg
|
48200
|
|
Axle load
|
1st axle
|
kg
|
8120
|
|
2nd axle
|
kg
|
8120
|
|
3rd axle
|
kg
|
12310
|
|
4th axle
|
kg
|
12310
|
|
5th axle
|
kg
|
7340
|
|
Travel performance
|
Max. travel speed
|
km/h
|
85
|
|
Min. turning diameter
|
m
|
≤24
|
|
Approach angle
|
°
|
9
|
|
Departure angle
|
°
|
9
|
|
Max. gradeability
|
%
|
≤25
|
|
Main technical data for operation
|
|
Main performance
|
Rated working height
|
m
|
68
|
|
Rated working depth
|
m
|
13
|
|
Work platform rated load
|
kg
|
400
|
|
Max. working radius
|
m
|
23
|
|
Boom
|
1st combined boom elevating range
|
mm
|
1~84
|
|
2nd combined boom elevating range
|
mm
|
?74~74
|
|
Outrigger span(longitudinal×lateral)
|
|
m
|
7635×7000
|
|
Working speed
|
Boom deploying time
|
S
|
≤200
|
|
Outrigger extending time
|
S
|
≤30
|
|
Slewing speed
|
r/min
|
0~0.4
|
|
Fire-fighting performance
|
Fire-fighting water monitor rated flow
|
L/s
|
50
|
|
Fire-fighting water monitor reach
|
m
|
≥70
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
