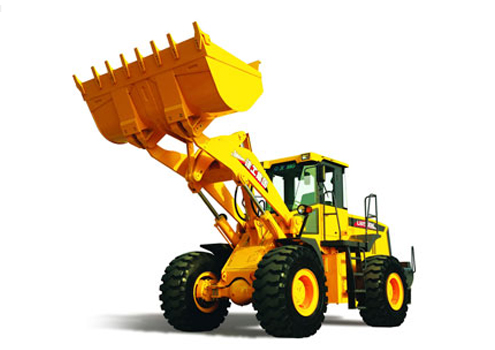

LW500K Wheel Loader

Large strength: the strong bucket breakout force of 17 ton and strong traction of 16.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
High dumping: the dumping height of the long boom reaches more than 3.7m, leading in the industry.
Item
Parameter
Unit
Rated load
5
t
Bucket capacity
3
Dumping height
3090
mm
Dumping distance
1130
mm
Max.drawing force
170
kN
Max. traction
165
kN
Dimension
8185×3000×3465
mm
Operating weight
17200
kg
Boom lifting time
≤6.0
≤6.0
Total time of three devices
11
s
Wheelbase
3300
s
Min. turning radius (bucket outer)
6910
mm
Rated power
162
kW
Travel speed
I Gear (Forward/Backward)
0-11.5/16.5
km/h
II Gear (Forward)
0-38
km/h
Long boom parameter
Item
Standard bucket
Coal bucket
Bucket capacity
2.7m³
3.5
Rated load
4.5t
4.0t
Dumping height
3710mm
3550mm
Dumping distance
1180mm
1300mm
Dimension
8870×3000×3350
8870×3000×3465
Attachment parameter
Attachment parameter—snow plow
Pushing snow width
3800
mm
Horizontal rotary angle
±38
°
Vibrating angle
±6
°
Obstacle crossing height
0~150
mm
Rated power
162
KW
Attachment parameter-clamp
Dumping height
3241
Dumping distance
1902
Min. circle diameter and max. opening
Basic model
?800×1990
IV model
?430×2000
Attachment parameter-Sliding fork
Fork folding angle
20
°
Attachment length
2053
mm
Attachment width
2516
mm
Attachment height
1200
mm
Fork teeth length
1200
mm
Attachment parameter-Side dumping
Bucket width
3000
mm
Dimension
8310×3040×3465
mm
Dumping height(straight/side) dumping
2960/4125
mm
Dumping distance(straight/side) dumping
1272/105
mm
Lifting height(straight/side) dumping
5407/6830
mm
