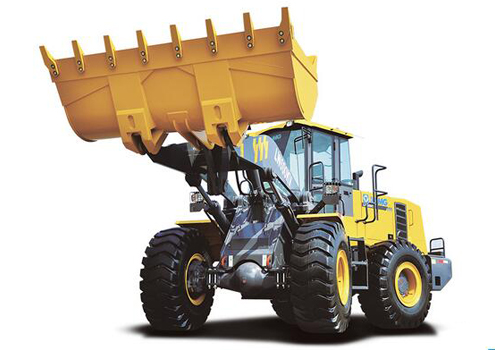

Wheel loader LW600KN Technical Specifications:
| Item |
Specification |
Unit |
| Rated operating load |
6000 |
kg |
| Bucket capacity |
3.0~4.5 |
m³ |
| Machine weight |
20000±300 |
kg |
| Dump clearance at maximum lift |
3170~3750 |
mm |
| Reach at maximum lift |
1200~1360 |
mm |
| Wheel base |
3350 |
mm |
| Tread |
2265 |
mm |
| Max.breakout force |
205 |
kN |
| Hydraulic cycle time-raise |
5.9 |
s |
| Total hydraulic cycle time |
10.9 |
s |
| Min. turning radius over tyres |
6005 |
mm |
| Articulation angle |
38 |
° |
| Gradeability |
28 |
° |
| Tyre size |
23.5-25 |
|
| Overall machine dimension L×W×H |
8505×3220×3515 |
|
| Rated Power |
178 |
Kw |
| Travel speed |
I-gear(F/R) |
6/6 |
km/h |
| II-gear(F/R) |
11/11 |
|
| III-gear(F/R) |
22/22 |
|
| IV-gear(F/R) |
34/34 |
km/h |
