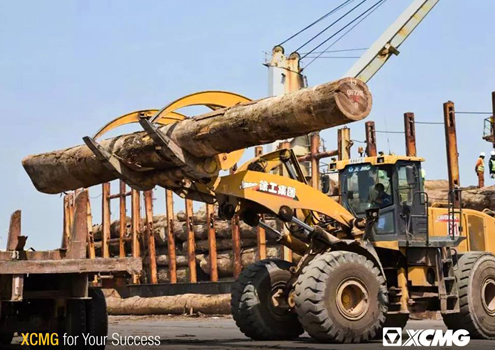

XCMG the clamp loader is one special equipment mainly for handling of timbers and is applicaible for handling and stacking of large logs at the ports and forest regions as well as the handling and laying of oil pipelines and drill pipes in the oilfields.
Extensive adaptability
XCMG clamp loader can be equipped with clamp working devices in different types, including V-shaped type, two-way clamping type, and intemal staggered type, as well as pipe grabber to meet more working needs.
The 1.5-10ton whole series products can be equipped with clamps to meet the needs of different users.
|
Item
|
Parameter
|
|
|
|
|
Rated load
|
8000kg
|
|
Operating weight
|
28500kg
|
|
Min. clearance
|
480mm
|
|
Max. traction
|
245kN
|
|
Max.drawing force
|
260kN
|
|
Boom lifting time
|
6.9s
|
|
Total time of three devices
|
11.8s
|
|
Engine
|
Model
|
QSM11-C335
|
|
Type
|
Electrical injection, turbo charging, air-air intercooling
|
|
Rated power
|
250kW
|
|
Rated rotary speed
|
2100r/min
|
|
Travel speed
|
Forward/Backward I Gear
|
7/7km/h
|
|
Forward/Backward II Gear
|
11.5/11.5km/h
|
|
Forward/Backward III Gear
|
24.5/24.5km/h
|
|
Forward IV Gear
|
35.5km/h
|
|
Tyre model
|
29.5-25-22PR
|
