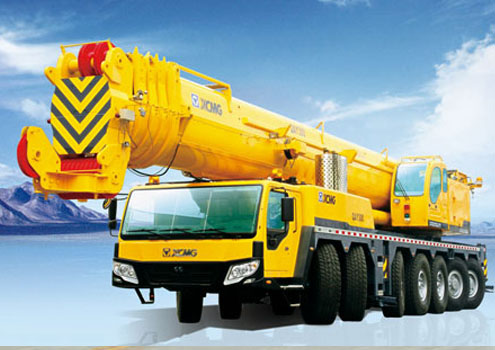

QAY300 Technical Specifications:
|
Dimension
|
Unit
|
QAY300
|
|
Overall length
|
mm
|
18210
|
|
Overall width
|
mm
|
|
|
Overall height
|
mm
|
4000
|
|
Weight
|
|
Total weight in travel
|
kg
|
79680
|
|
Front axle load (axle 1, 2, 3)
|
kg
|
11625
|
|
Rear axle load (axle 4, 5, 6, 7)
|
kg
|
11201
|
|
Power
|
|
Engine model
|
|
TAD722VE
|
|
OM502LA.III/5
|
|
Engine rated power
|
kW/(r/min)
|
194/2100
|
|
420/1800
|
|
Engine rated torque
|
N.m/(r/min)
|
2700/1080
|
|
Travel
|
|
Max. travel speed
|
km/h
|
75
|
|
Min. turning diameter
|
m
|
24
|
|
Min. ground clearance
|
mm
|
|
|
Approach angle
|
°
|
19
|
|
Departure angle
|
°
|
19
|
|
Max. gradeability
|
%
|
40
|
|
Oil consumption per 100km
|
L
|
|
|
Main performance
|
|
Max. rated total lifting capacity
|
t
|
300
|
|
Min. rated radius
|
mm
|
|
|
Turning radius at turntable tail
|
m
|
|
|
Max. lifting torque
|
kN.m
|
9526
|
|
Base boom
|
m
|
|
|
Fully extended boom
|
m
|
|
|
Fully extended boom + jib
|
m
|
|
|
Outrigger longitudinal distance
|
m
|
8.7
|
|
Outrigger transverse distance
|
m
|
9.2
|
|
Working speed
|
|
Boom luffing time
|
s
|
|
|
Boom full stretching time
|
s
|
|
|
Max. swing speed
|
r/min
|
|
|
Max. speed of main winch (single rope) (no load)
|
m/min
|
|
|
Max. speed of aux. winch (single rope) (no load)
|
m/min
|
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
