QY110K Technical Specifications:
| Dimension |
Unit |
QY110K |
| Overall length |
mm |
14800/15270 |
| Overall width |
mm |
3000 |
| Overall height |
mm |
3920 |
| Weight |
|
|
| Total weight in travel |
kg |
54900/58000 |
| Front axle load (axle 1, 2, 3) |
kg |
7500/7500/8300(9000) |
| Rear axle load (axle 4, 5) |
kg |
12000(13000)12000(13000)/7600(8000) |
| Power |
|
|
| Engine model |
|
OM906LA/OM460LA |
| Engine rated power |
kW/(r/min) |
162/2100 360/1800 |
| Engine rated torque |
N.m/(r/min) |
1054/1500 2200/1300 |
| Travel |
|
|
| Max. travel speed |
km/h |
80 |
| Min. turning diameter |
m |
24 |
| Min. ground clearance |
mm |
300 |
| Approach angle |
° |
20 |
| Departure angle |
° |
14 |
| Max. grade ability |
% |
40 |
| Fuel consumption for 100km |
L |
75 |
| Main performance |
|
|
| Max. rated total lifting capacity |
t |
110 |
| Min. rated working radius |
m |
3 |
| Turning radius at turntable tail |
m |
4.51 |
| Max. lifting torque |
kN.m |
4233 |
| Base boom |
m |
12.8 |
| Fully extended boom |
m |
58 |
| Fully extended boom+ jib |
m |
76.1 |
| Longitudinal outrigger span |
m |
7.56 |
| Lateral outrigger span |
m |
7.6(5.2) |
| Working speed |
|
|
| Boom luffing time |
s |
60 |
| Boom full extension time |
s |
600 |
| Max. swing speed |
r/min |
1.9 |
| Max. speed of main winch (single rope) (no load) |
m/min |
≥105 |
| Max. speed of aux. winch (single rope) (no load) |
m/min |
≥105 |
& Due to improvements made to the product, data herein is subject to change without notice.

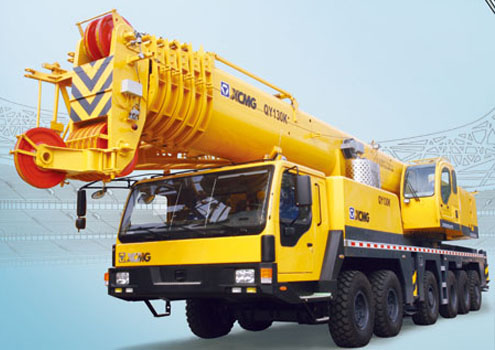

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
