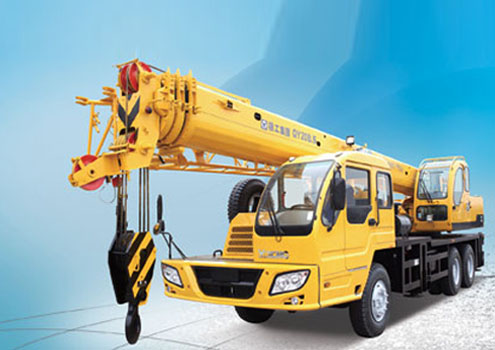

QY20B.5 xcmg truck crane

QY20B.5 Technical Specifications:

Dimension

Unit

QY20B.5

Overall length

mm

12400

Overall width

mm

2500

Overall height

mm

3300

Weight



Total weight in travel

kg

26020

Front axle load

kg

6900

Rear axle load

kg

19120

Power



Engine model


SC8DK260Q3, WD615.327

Engine rated power

kW/(r/min)

192/2200 198/2200

Engine rated torque

N.m/(r/min)

1100/1400 1150/1400

Travel



Max. travel speed

km/h

75

Min. turning diameter

m

20

Min. ground clearance

mm

270

Approach angle

°

21

Departure angle

°

11

Max. grade ability

%

35

Fuel consumption for 100km

L

≈35

Main performance



Max. rated total lifting capacity

t

20

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.385

Max. lifting torque

kN.m

860

Base boom

m

10.06

Fully extended boom

m

32.76

Fully extended boom+jib

m

42.12

Longitudinal outrigger span

m

4.97

Lateral outrigger span

m

5.4

Working speed



Boom luffing time

s

75

Boom full extension time

s

95

Max. swing speed

r/min

3

Max. speed of main winch (single rope)

m/min

100

Max. speed of aux. winch (single rope)

m/min

100


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
