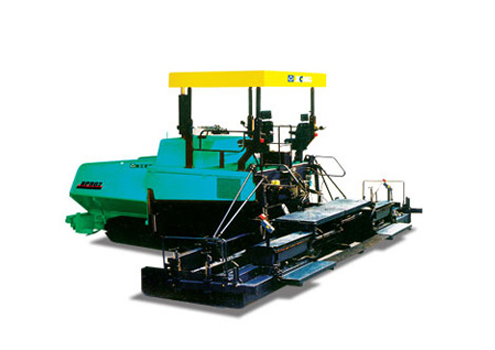

RP602 Paver

RP602 multi-functional paver can be applied to the paving of basic stabilized material and surface material. The machine adopts independent right drive and left drive, micro-computer control, and the telescopic screed with single vibrating tamper. The material level is controlled by ultrasonic sensing technique, featuring good stability in low-speed paving, even material feeding, high preloading compactness, good pavement evenness, and easy operation. It can absolutely meet the construction requirements.
RP602 Paver Technical Specifications:

Item

Unit

RP602

Basic paving width

m

2.5

Max. paving width

m

6

Max. paving thickness

mm

380

Paving speed

m/min

0~14

Travel speed

km/h

0~3.0

Theoretical productivity

t/h

400

Hopper capacity

t

13

Gradeability

%

20

Pavement evenness

mm/3m

3

Cross slope error

%

±0.03

Crown adjustment range

%

0~3

Diesel engine model


BF4M1013C

Diesel engine power

kw

118

Diesel engine speed

r/min

2300

Diesel oil tank capacity

L

230

Overall weight

t

15.8~21.5

Dimension

mm

6230×2500×3855

Vibration frequency

Hz

/

Screed heating mode


Electrical heating

Material level control mode


Automatic Control by Ultrasonic Sensor

Automatic Leveling Control


Simulation control


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
