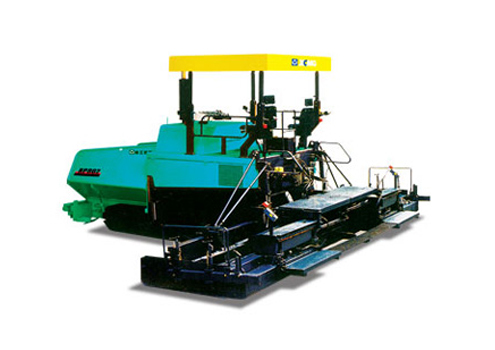

RP802 multi-functional paver can be applied to the paving of basic stabilized material and surface material. The machine adopts independent right drive and left drive, micro-computer control, and the telescopic screed with single vibrating tamper (RP802 is equipped with pulse vibration). The material level is controlled by ultrasonic sensing technique, featuring good stability in low-speed paving, even material feeding, high preloading compactness, good pavement evenness, and easy operation. It can absolutely meet the construction requirements.
RP802 Paver Technical Specifications:
|
Item
|
Unit
|
RP802
|
|
Basic paving width
|
m
|
3
|
|
Max. paving width
|
m
|
8
|
|
Max. paving thickness
|
mm
|
380
|
|
Paving speed
|
m/min
|
0~14
|
|
Travel speed
|
km/h
|
0~3.0
|
|
Theoretical productivity
|
t/h
|
600
|
|
Hopper capacity
|
t
|
13
|
|
Gradeability
|
%
|
20
|
|
Pavement evenness
|
mm/3m
|
3
|
|
Cross slope error
|
%
|
±0.03
|
|
Crown adjustment range
|
%
|
0~3
|
|
Diesel engine model
|
|
BF4M1013C
|
|
Diesel engine power
|
kw
|
118
|
|
Diesel engine speed
|
r/min
|
2300
|
|
Diesel oil tank capacity
|
L
|
230
|
|
Overall weight
|
t
|
16.5~23.5
|
|
Dimension
|
mm
|
6230×3000×3855
|
|
Vibration frequency
|
Hz
|
68~71
|
|
Screed heating mode
|
|
|
|
Material level control mode
|
|
|
|
Automatic Leveling Control
|
|
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
