1. The turbo charged engine features strong power, high efficiency and energy saving capabilities, and has a large torque reserve coefficient;
2.The extended track ensures low ground pressure, high reliability and strong traction;
3. The planetary power shift transmission features a compact structure, smooth gear shifting, high efficiency and a long service life;
4. Forward and reverse motion, gear shifting and steering are all controlled by a single PPC lever;
5. Integrated dashboard design makes observation of machine processes more logical;
6. The hexahedron cab has a beautiful appearance, wide visibility and is very comfortable;
7.Equipped with a straight angle blade, which is used for excavating, transporting, and backfilling in earth moving projects on roads, farms, rivers, urban areas and power plant projects.

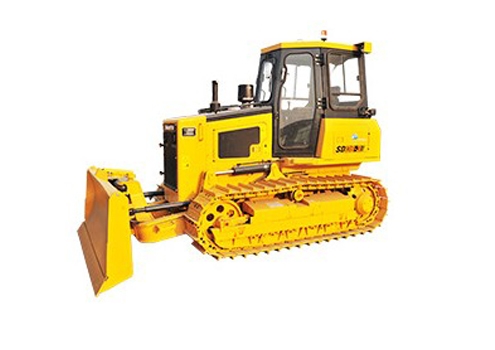

SD08 Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD08-3
|
|
L×W×H (Ripper not included)
|
mm
|
3973×2553×2785
|
|
Operating weight (Ripper not included)
|
t
|
7.65
|
|
Engine
|
-
|
Weichai WP4G90E235
|
|
Rated power
|
kW/rpm
|
63/2350
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt blade
|
|
Blade width
|
mm
|
2553×890
|
|
Dozing capacity
|
m3
|
2.02
|
|
Ma× drop below ground of blade
|
mm
|
383
|
|
Lift height of blade
|
mm
|
850
|
|
Ripper type
|
-
|
-
|
|
Ripping depth of ripper
|
mm
|
-
|
|
Lifting height of ripper
|
mm
|
-
|
|
Number of carriers (each side)
|
-
|
1
|
|
Number of track rollers (each side)
|
-
|
6
|
|
Number of track shoes (each side)
|
-
|
41
|
|
Width of track shoe
|
mm
|
460
|
|
Track gauge
|
mm
|
1450
|
|
Ground length and ground pressure
|
mm/MPa
|
2185-0.038
|
|
Pitch
|
mm
|
154.25
|
|
Forward speed
|
km/h
|
0-2.53
|
|
0-4.55
|
|
0-7.57
|
|
Reverse speed
|
km/h
|
0-2.76
|
|
0-4.95
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
