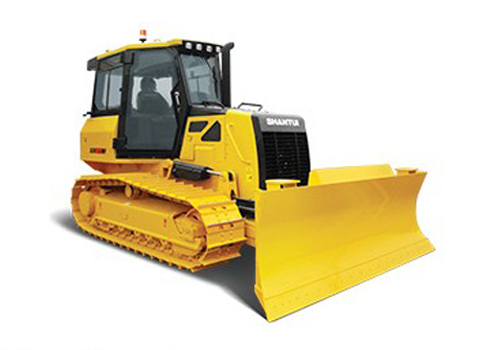

SD10YE Bulldozer Technical Specifications:
|
ITEM
|
UNIT
|
SD10YE
|
|
L×W×H (Winch not included)
|
mm
|
4406×2860×2763
|
|
Operating weight (Ripper not included)
|
t
|
9.2
|
|
Engine
|
-
|
QSB4.5(Euro Stage IIIA& Euro StageIIIB)
|
|
Rated power
|
kW/rpm
|
72/2200
|
|
Gradeability
|
°
|
30
|
|
Blade type
|
-
|
Straight tilt blade
|
|
Blade width
|
mm
|
2860
|
|
Dozing capacity
|
m3
|
2.38
|
|
Ma× drop below ground of blade
|
mm
|
450
|
|
Lift height of blade
|
mm
|
900
|
|
Ripper type
|
-
|
-
|
|
Ripping depth of ripper
|
mm
|
-
|
|
Lifting height of ripper
|
mm
|
-
|
|
Number of carriers (each side)
|
-
|
2
|
|
Number of track rollers (each side)
|
-
|
-
|
|
Number of track shoes (each side)
|
-
|
-
|
|
Width of track shoe
|
mm
|
460
|
|
Track gauge
|
mm
|
1650
|
|
Ground length and ground pressure
|
mm/MPa
|
2360-0.4
|
|
Pitch
|
mm
|
171.45
|
|
Forward speed
|
km/h
|
0-9
|
|
|
|
|
|
Reverse speed
|
km/h
|
0-9
|
|
|
* With an electronically controlled engine, the SD10YE meets Tier 3/Stage III A levels for European and American off-road motor vehicles;
* Continuous variable transmission and localized rotary functions;
* Drive operations use a PCCS control system, the working devices use a PPC lead control system, offering flexibility and convenience;
* The Intelligent control system for cooling water and oil temperatures is highly efficiency and saves energy;
* Automatic trouble warning and diagnosis functions;
* GPS intelligent service system for remote position, diagnosis and control;
* ROPS/FOPS hexahedron enclosed cab provides low noise and shock absorption. The split-function air conditioner can both defrost and replace cabin air;
* The multifunctional dashboard, the operation conditions monitor, the world famous suspension seat, a cup holder, storage box and ash tray, and the roomy cab, provide a more comfortable environment for the operator;
* Integrated high-intensity main frame;
* Multi-functional, six-directional blade, which can be used for excavating, transporting, backfilling and grading for project on roads, farms, rivers, urban areas and power plants.
