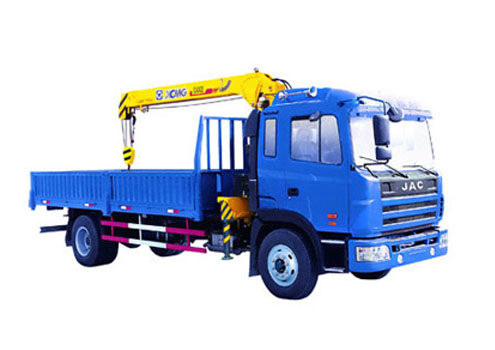

SQ4Sk2Q Technical Specifications:
|
Model
|
SQ4SK2Q
|
Unit
|
|
Max Lifting Capacity
|
4000
|
kg
|
|
Max Lifting Moment
|
8.40/10
|
T.M
|
|
Recommend Power
|
16
|
kw
|
|
Max Oil Flow of Hydraulic System
|
25
|
L/min
|
|
Max Pressure of Hydraulic System
|
20
|
MPa
|
|
Oil Tank Capacity
|
60
|
L
|
|
Rotation Angle
|
All Rotation
|
|
|
Crane Weight
|
1271/1396
|
kg
|
|
Installation Space
|
850
|
mm
|
|
Choice of Chassis
|
EQ1092FJ; EQ1092FJ1; EQ1092F3GJ1; EQ1081GJ12D5; DFL1120B; LZ1120LAPT; HFC1132KR1K3; EQ5121GFJ; HFC1083K103R1D; EQ1110GLJ3; EQ1120GLJ; EQ1168TLJ; BJ1122V4PBB-A1; BJ1158VKPFK-2
|
|
SQ4SK2Q Lifting capability diagram
|
|
Working radius (m)
|
2.10
|
2.50
|
3.00
|
7.93
|
|
Lifting capacity (kg)
|
4000
|
3120
|
2580
|
754
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
