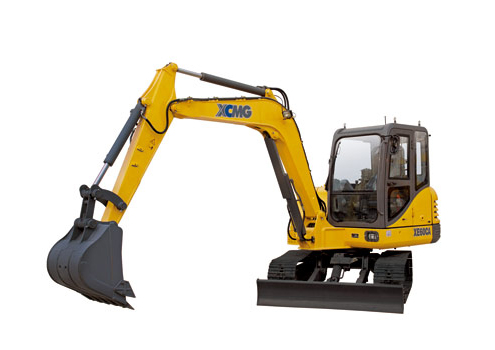

XE60CA Excavator

XE60CA adopts a YANMAR engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator’s better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users. The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members. The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.
XE60CA Excavator Technical Specifications:

Model


XE60CA

Operating weight

kg

5960

Standard bucket capacity


0.09-0.23

Engine

Engine Model

/

4TNV94L

Direct injection

/


Four strokes

/


Water cooling

/


Turbo charged

/

×

Air to air intercooler

/

×

No. of cylinders

/

4

Rated power/speed

kw/rpm

39.8/2200

Max. torque/speed

N.m

214/1100

Displacement

L

3.054

The main performance

Travel speed

km/h

4.2/2.2

Swing speed

r/min

11

Max. gradeability

/

30°

Ground pressure

kPa

32.5

Max.Bucket digging force

kN

48.3

Max.arm crowd force

kN

32.5

Hydraulic system

Main pump

/

Rexroth/Mr Gale

Rate flow of main pump

L/min

138/143

Max pressure of prime relief valve

MPa

24.5

Max pressure of travel system

MPa

22

Max pressure of swing system

MPa

21

Max pressure of pilot system

MPa

3.5

Fuel tank capacity

L

110

Oil capacity

Hydraulic tank capacity

L

85

Engine lubrication

L

12

A Overall length

mm

5960

Overall dimensions

B Overall width

mm

1920

C Overall height

mm

2585

D Overall width of upperstructure

mm

1780

E Track length

mm

2540

F Overall width of undercarriage

mm

1920

G crawer width

mm

400

H Dozer black(width/height)

mm

1920×340

I Tumbler distance

mm

1990

J Crawer gauge

mm

1550

K Clearance under counter weight

mm

710

L Ground clearance

mm

385

M Min.tail swing radius

mm

1660

A Max. digging height

mm

5630

Working range

B Max. dumping height

mm

3945

C Max. digging depth

mm

3830

E Max. vertical wall digging depth

mm

2680

F Max. digging reach

mm

6130

G Min. swing radius

mm

2460

H Max.dozer lifting height

mm

390

I Max.dozer cutting depth

mm

560

Angle of arm deflection

Degree

/


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
