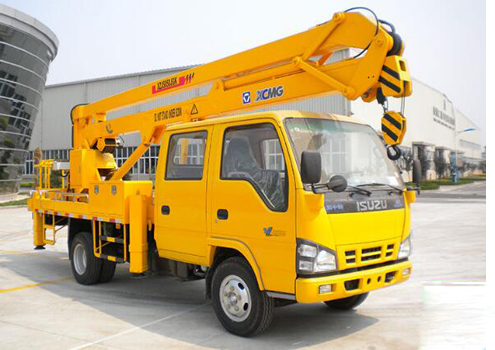

xcmg Folding Jib Aerial Working Vehicle
| Vehicle Model |
XZJ5050JGK |
| Max Operating Height |
14.6m |
| Max Operating Radius |
6.1m |
| Rated Load of Platform |
200Kg |
| Slewing Angle |
±360° |
| Max Operating Radius on Maximum Operating Height |
2m |
| Max Operating Height on Maximum Operating Radius |
8.9m |
| Max Lifting Capacity |
2000Kg |
| Max Lifting Height |
9m |
| Dimension in Driving( L × W × H) |
7150×2000×2920(mm) |
| Model of Chassis |
JX1060TSG23 |
| Model of Engine |
JX493ZLQ3 |
| Power of Engine |
85kw |
| Passengers |
2+3 |
