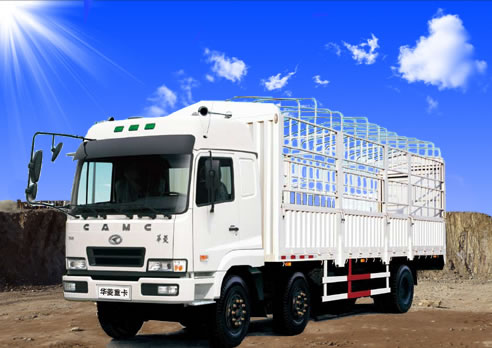

6×2 Stake Truck

CAMC Stake Truck/Stake Type Cargo Truck Parameters

Model HN5250Z24D8M3CSG Batch 247
Branch Hualing Star Name Stake Truck
Rated Weight 15805 Total Weight 25000
Preparative Weight 9000 Fuel Diesel
Emission Standard GB3847-2005,GB17691-2005,stage Ⅲ national emission regulation Axis 3 axis
Wheelbase 1850+4800 Wheel Pressure 6750/6750/11500
Spring 9/9/9+6 springs Wheel 8 wheels
Wheel Standard 11.00-20,11.00R20,10.00-20,10.00R20 Approach/Depature Angle 25/16
Front/Rear Suspension 1370/3080 Front Wheelspan 2065/2065
Rear Wheelspan 1860 Chassis 1 HN1250Z24D8M3J
Total Length 11100 Total 2500
Total 3850 Goods Box Length 8700
Goods Box 2300 Goods Box 600,800
Max Speed 90 Rated Member -
Rated Member in Cab 3 Quality utilization coefficient 1.78
PS 1. Accelerating noise outside is within the limit of GB1495-2002 stage II 2. High roof cabs in the same series are chosen and assembled. 3. Top-bottom distance of the stake body is 2400mm 4. Safety equipment: Q235 srewed side and rear guardrail, section size 50×100mm, 500mm above ground. 5. Driving log recorders are equipped.
