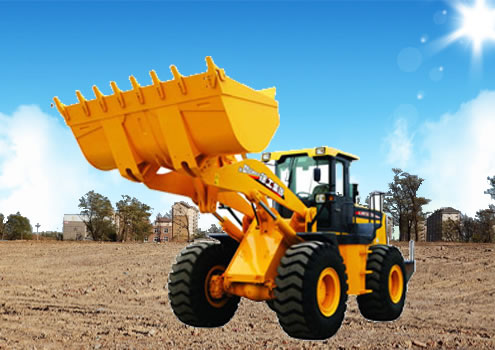

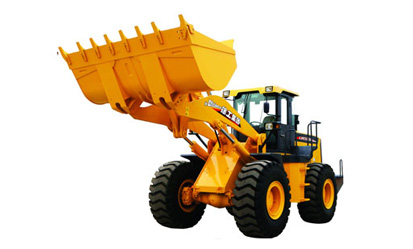

LW500F
The performance, efficiency, structural strength, service life, daily maintenance and operation condition are upgraded all round. With the two breakthroughs of driving medium and covering part, the machine is ahead of other product of the same kind essentially. The machine is especially adapted to the working conditions of aggregate, earthmoving, coal. The shoveling work efficiency ranks top in the industy.
Item
Parameter
Unit
Rated load
5.0
t
Bucket capacity
3.0
Dumping
3100
mm
Dumping distance
1274
mm
Max.drawing force
158
kN
Max. traction
156
kN
Dimension
8010×3016×3350
Operating weight
16.5
t
Boom lifting time
≤5.6
s
Total time of three devices
≤9.9
s
Wheelbase
2900
mm
Min. turning radius (bucket outer)
6920
mm
Rated power
±35°
Travel speed
I Gear (Forward/Backward)
0~11.5/16.5
km/h
II Gear (Forward)
0~38
km/h
Long boom parameter
Standard bucket
Coal bucket
Bucket capacity
2.7m³
3.5m³
Rated load
4.5t
4.0t
Dumping
3520mm
3340mm
Dumping distance
1230mm
1380mm
Dimension
8300×3016×3350
8530×3016×3350
Min. turning radius (bucket outer)
7060mm
7080mm
Operating weight
16.6t
16.7
