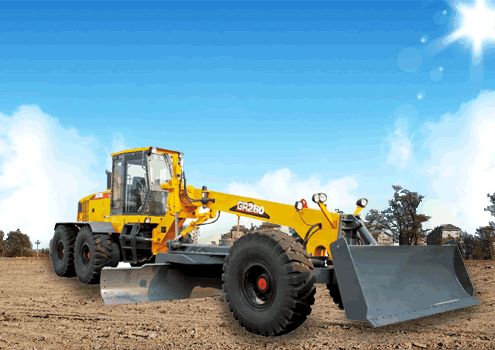

GR260 Motor Grader

Technical Specifications

GR260
Basic specification
Engine model 6CTA8.3—C260
Rated power/speed 194kW/2200rpm
Dimension(LxWxH) 10280×3100×3550mm
Operating weight(Standard) 24000kg
Performance specification
Travelling speed ,forward 5,8,11,19,23,38 km/h
Travelling speed ,reverse 5,11,23 km/h
Tractive force(f=0.8) 132KN
Max. gradeability 36%
Tire inflation pressure 350 MPa
Working hydraulic pressure 18 MPa
Transmission pressure 1.3~1.8MPa
Operating specification
Max. steering angle of front wheels Left / Right 50°
Max. lean angle of front wheels Left / Right 17°
Max. oscillation angle of front axle Up / down 15°
Max. oscillation angle of balance box Before / after 15
Frame articulation angle Left / Right 27°
Min. turning radius using articulation 8.3m
Biade
Maximum lift above ground 450mm
Maximum depth of cutting 500mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard X 4572×787mm
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
