Technical Specifications

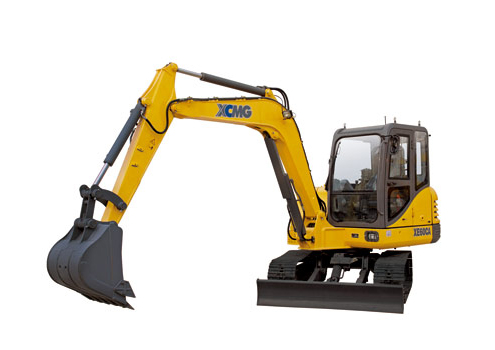

Model			XE60CA
Operating weight		kg	5960
Standard bucket capacity		m³	0.09-0.23
Engine	Engine Model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	39.8/2200
	Max. torque/speed	N.m	214/1100
	Displacement	L	3.054
The main performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	11
	Max. gradeability	/	30°
	Ground pressure	kPa	32.5
	Max.Bucket digging force	kN	48.3
	Max.arm crowd force	kN	32.5
Hydraulic system	Main pump	/	Rexroth/Mr Gale
	Rate flow of main pump	L/min	138/143
	Max pressure of prime relief valve	MPa	24.5
	Max pressure of travel system	MPa	22
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.5
	Fuel tank capacity	L	110
Oil capacity	Hydraulic tank capacity	L	85
	Engine lubrication	L	12
	A Overall length	mm	5960
Overall dimensions	B Overall	mm	1920
	C Overall	mm	2585
	D Overall of upperstructure	mm	1780
	E Track length	mm	2540
	F Overall of undercarriage	mm	1920
	G crawer	mm	400
	H Dozer black(/)	mm	1920×340
	I Tumbler distance	mm	1990
	J Crawer gauge	mm	1550
	K Clearance under counter weight	mm	710
	L Ground clearance	mm	385
	M Min.tail swing radius	mm	1660
	A Max. digging	mm	5630
Working range	B Max. dumping	mm	3945
	C Max. digging depth	mm	3830
	E Max. vertical wall digging depth	mm	2680
	F Max. digging reach	mm	6130
	G Min. swing radius	mm	2460
	H Max.dozer lifting	mm	390
	I Max.dozer cutting depth	mm	560
	Angle of arm deflection	Degree	/

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
