1.Shanghai Longji Construction Machinery Co., Ltd.
|
|||
|

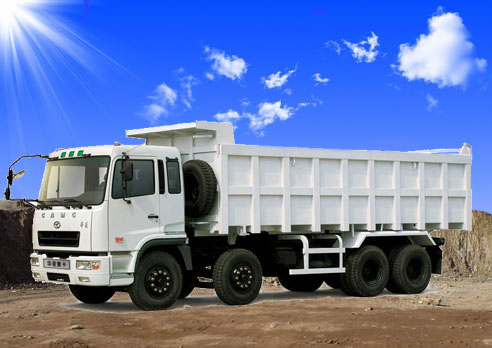

2.Vehicle Type
|
Dump Truck
|
3.Trade-mark(Brand)
|
Hualing Star
|
|
4.Vehicle Model
|
HN3310P38C3M
|
5.Color
|
Blue
|
|
6.Engine Brand
|
DF Cummins
|
7.Engine Model
|
L375 20
|
|
8.Fuel Type
|
Diesel Oil
|
9.Displacement Standard
|
GB3847-2004 GB17691-2001
|
|
10.Displacement/ power(ml/kw)
|
8900/273
|
11.Emission Standard
|
Euro ?
|
|
12.Steering
|
steering Wheel
|
13.Driving Model
|
Left-hand
|
|
14.Transmission Type
|
9JS150T
|
15.Transmission Brand
|
FAST GEAR
|
|
16.Tread(mm)
|
2065/2065/1860/1860
|
17.Tire Number
|
12+1
|
|
18.Tire Specification
|
12.00R20
|
19.Number of Plate Spring(F/R)
|
9/12
|
|
20.Wheel Base(mm)
|
1850+3370+1350
|
21.Number of Axle
|
4
|
|
22.Overall Dimensio(L×W×H)(mm)
|
9880×2495×3360
|
23.Packing Box Inside Dimension(L×W×H)(mm)
|
7000×2300×1500
|
|
24.GVW(kg)
|
32000
|
25.Rated Payload (kg)
|
15955
|
|
26.Kerb Mass(kg)
|
14850
|
27.Ratio of Payload and Kerb Mass
|
1.09
|
|
28.Crew
|
3
|
29.Mini. Ground Clearance
|
255mm
|
|
30.Max. Speed(km/h)
|
75
|
31.Date of Production
|
the Update
|
|
Remarks
|
Including air conditioner,mp3 player, Hitachi steering device.
We can produce the truck you need according to your special requirement.
|
||
