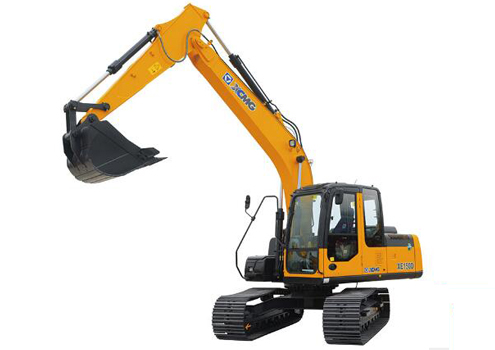

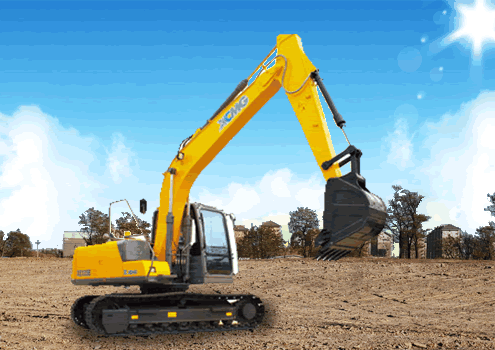

XE150D

Technical Specifications

Model Unit XE150D
Operating weight kg 14400
Standard bucket capacity 0.52-0.61
Engine Engine Model / CUMMINS 4BTAA3.9
Direct injection /
Four strokes /
Water cooling /
Turbo charged /
Air to air intercooler /
No. of cylinders / 4
Rated power/speed kw/rpm 85.4/2200
Max. torque/speed N.m 447/1500
Displacement L 3.927
The main performance Travel speed km/h 5.2/3.4
Swing speed r/min 12.3
Max. gradeability / ≥35
Ground pressure kPa 38
Max.Bucket digging force kN 85
Max.arm crowd force kN 65
Max.traction force kN 135
Hydraulic system Main pump / 2????
Rate flow of main pump L/min 2×120
Max pressure of prime relief valve MPa 31.4/34.3
Max pressure of travel system MPa 34.3
Max pressure of swing system MPa 25
Max pressure of pilot system MPa 3.9
Oil capacity Fuel tank capacity L 250
Hydraulic tank capacity L 130
Engine lubrication L 14
Overall dimensions A Overall length mm 7801
B Overall mm 2590
C Overall mm 2880
D Overall of upperstructure mm 2512
E Track length mm 3660
F Overall of undercarriage mm 2590
G Crawer ? 600
H Track length on ground mm 2910
I Crawer gauge mm 1990
J Clearance under counter weight mm 964
K Ground clearance mm 478
L Min.tail swing radius mm 2325
Working range A Max. digging mm 8641
B Max. dumping mm 6181
C Max. digging depth mm 5538
D 8inch horizonal digging depth mm 5287
E Max. vertical wall digging depth mm 4727
F Max. digging reach mm 8296
G Min. swing radius mm 2335
Angle of arm deflection Degree ——
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
