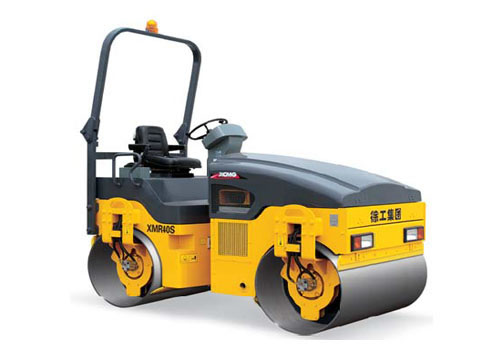

XMR40S Roller

Technical Specifications

Main technical specifications unit XMR40S
Operating weight kg 4000
Static linear load(front/rear) N/cm 154/154
Speed km/h 0-10
Gradeability % 30
min turning radius (L/R) mm 2900/4200
min ground clearance mm 240
wheel base mm 1900
steering angle 30
swing angle 10
vibration frequency Hz 60
vibration system max pressure Mpa 18
steering system max pressure Mpa 16
nominal amplitude mm 0.4
centrifugal force KN 40
compacting mm 1300
drum diameter mm 800
Engine model Detuz F3L2011
Rated speed r/min 2600
Rated power kw 33.9
Overall dimensions mm 2860*1425*2995
Rated oil wear g/kw.h 230
Fuel tank capacity L 67
Hydraulic tank capacity L 80
Sprinkler capacity L 170
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
