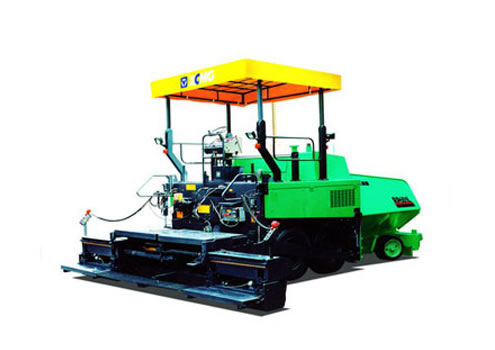

RP601L Paver
RP601L/RP701L is a tyre type paver featuring good maneuverability, high speed and large traction force. It can meet different paving requirements, and the paving width can be stepless adjusted from 2.5m to 7.0m. It is mainly used for the maintenance of municipal roads, parking lots, highways of high grade and road paving operations. It can be used to pave multiple kinds of materials, especially the asphalt concrete materials, and it can be flexibly used in small, medium or large paving operations. And it also features satisfactory levelness and compactness.

Technical Specifications

Items Unit Parameters
Model RP601L/RP701L
Basic paving m 2.5
Max. paving m 6.0/7.0
Max. paving thickness mm 300
Paving speed m/min 0~18
Travel speed km/h 0~18
Theoretical Productivity t/h 400
Hopper Capacity t 13
Gradeability % 20
Pavement evenness mm/3m 3
Transverse levelling accuracy % ±0.03
Centre crown ratio % 0~+3
Engine model D4114ZG2B
Engine power kw 100
Engine speed r/min 2400
Fuel tank capacity L 170
Machine weight t 15.3~19
Dimension mm 6096X2580X3832
Auger speed r/min 0~82
Conveyor speed m/min 0~36
Vibrator speed r/min 0~1470
Vibrator amplitude mm 4
Screed heating Electrical heating
Auger and conveyor control Automatic Control by Ultrasonic Sensors
Automatic levelling control Simulation control
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
