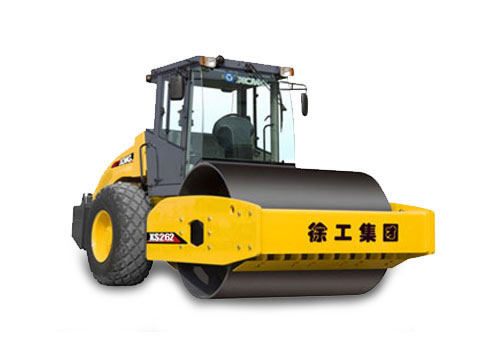

XS262 Roller
XS262 road roller is the super heavy-duty hydraulic drive vibratory roller with the largest tonnage in China. Representing XCMG’s new generation of super heavy-duty vibratory rollers, the machine takes a lead in operation, propulsion, compaction, reliability and serviceability in the industry, becoming an optimal compacting equipment in the constructions of high-grad roads, airports, ports, dams, and construction sites. It adopts large power engine and anti-slip hydraulic drive system, which can meet various construction requirements better.

Item Unit XS262
Operation weight kg 26000
Load on front drum kg 17000
Load on rear wheels kg 9000
Drum mm 2130
Static linear load N/cm 784
Vibration frequency(Low/High) Hz 27/32
Nominal amplitude(High/Low) mm 1.9/0.95
Excitation force(High/Low) KN 410/300
Travel speed km/h 0~10
Steering angle ° ±33
Swing angle ° ±10
Theoretical gradeability % 50
Min. external turning radius mm 7180
Engine model DEUTZ BF6M1013EC
Engine power kw 160
Rated engine speed r/min 2200
Engine oil consumption g/kW.h 228
Hydraulic oil tank capacity L 290
Fuel tank capacity L 290
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
