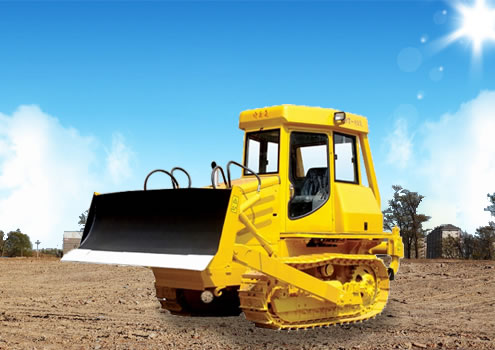

T80 Bulldozer

Technical Specifications

Model T80
Total weight(kg) 9200(with ripper)
Max towing force(kn) 69
Engine model LR4A3Z-22
Engine rated power/speed(kw/r/min) 70/2200
Fuel consumption of the engine(g/km.h) ≤246
Engine max torque 313.9
Forward I-IV gears(km/h) 2.4-10.4
Reverse I-II gears(km/h) 4.9-8.9
Caterpillar track board (mm) 400
Land pressure 53
Overall dimension(L×W×H)(mm) 4200 (without ripper) ×2480×2740
Bulldozer shovel(W×H)(mm) 2480×922
Max lifting of blade(mm) 736.5
Max digging depth of blade(mm) 370
Towing equipment/ripper(optional) Fixed/3-teeth
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
