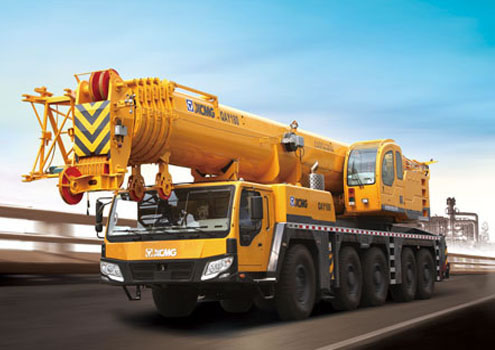

QAY180

Technical Specifications

Dimension Unit QAY180
Overall length mm 15770
Overall mm
Overall mm 4000
Weight
Overall weight in transport kg 60000
Front axle load kg
Rear axle load kg
Power
Engine model TAD720VE OM460LA.E3A/1
Engine rated power kW/(r/min) 162/2100 360/1800
Engine rated torque N.m/(r/min) 2200/1100
Travel
Max. travel speed km/h 80
Min. turning diameter m 20
Min. ground clearance mm
Approach angle ° 16
Departure angle ° 13
Max. grade ability % 50
Fuel consumption for 100km L
Main performance
Max. rated total lifting capacity t 180
Min. rated working radius mm
Turning radius at turntable tail m
Max. lifting torque kN.m 5420
Base boom m
Fully extended boom m 62
Fully extended boom+ jib m
Longitudinal outrigger span m 8.3
Lateral outrigger span m 8.9
Working speed
Boom luffing time s
Boom full extension time s
Max. swing speed r/min
Max. speed of main winch (single rope) (no load) m/min
Max. speed of aux. winch (single rope) (no load) m/min

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
