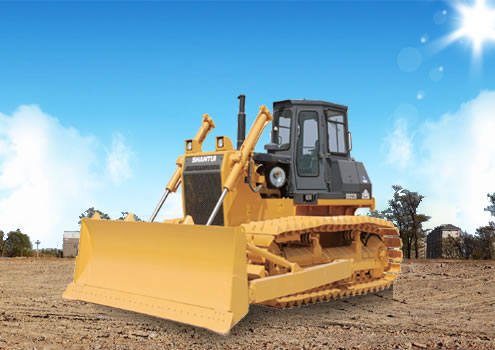

SD23 Bulldozer

Technical Specifications

ITEM UNIT SD23
L×W×H (Ripper not included) mm 5874×3725×3360
Operating weight (Ripper not included) t 24.6
Engine - Cummins NT855-C280S10
Rated power kW/rpm 169/2000
Gradeability ° 30
Blade type - Straight tilt bladeU-bladeAngle blade
Blade mm Straight tilt blade 3725×1395U blade3860×1379 Angle blade4365×1107
Dozing capacity m3 Straight tilt blade 7.8 U blade 8.4Angle blade 5.4
Ma× drop below ground of blade mm 540
Lift of blade mm 1210
Ripper type - Single ripperThree-shank ripper
Ripping depth of ripper mm Single ripper 695Three-shank ripper 666
Lifting of ripper mm Single ripper 515 Three-shank ripper 555
Number of carriers (each side) - 2
Number of track rollers (each side) - 7
Number of track shoes (each side) - 39
of track shoe mm 560/610/660
Track gauge mm 2000
Ground length and ground pressure mm/MPa 2840-0.078
Pitch mm 216
Forward speed km/h 0-3.8
0-6.8
0-11.8
Reverse speed km/h 0-4.9
0-8.5
0-14.3
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
