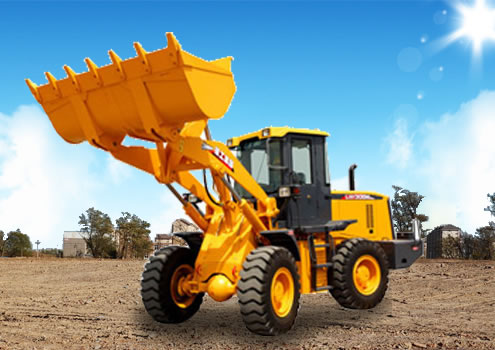

LW300K

Technical Specifications

Item Parameter Unit
Rated load 3.0 t
Bucket capacity 1.8 m3
Dumping 2930 mm
Dumping distance 1000 mm
Max.drawing force ≥120 kN
Max. traction ≥90 kN
Dimension (L×W×H) 7250×2580×3290 mm
Operating weight 10.6 t
Boom lifting time 5.68 s
Total time of three devices 10.3 s
Wheelbase 2900 mm
Min. turning radius (bucket outer) 6067 mm
Rated power 92 kW
Long boom parameter
Bucket capacity 1.5/1.8 m3
Rated load 2.7/2.7 t
Dimension (Length × × ) 7540×2580×3290
7640×2580×3290
mm
Dumping 3290/3225 mm
Dumping distance 1092/1172 mm
Operating weight 10.6/10.8 t
Attachment parameter-grasping grass
Dumping 3043 mm
Dumping distance 2036 mm
Clamp body 2200 mm
Max. opening 2800 mm
Attachment parameter-clamp(III)
Dumping 2784 mm
Dumping distance 1134 mm
Min. circle diameter 590 mm
Max. opening 1700 mm
Attachment parameter-side dumping
Bucket 2650 mm
Dimension 7414×2650×3290 mm
Dumping (straight/side) dumping 2813/3623 mm
Dumping distance (straight/side) dumping 1104/183 mm
Lifting (straight/side) dumping 5120/6052 mm
Attachment parameter-Sliding fork
Fork folding angle 20 °
Attachment length 1575 mm
Attachment 1980 mm
Attachment 1200 mm
Fork teeth length 1050 mm
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
