Technical Specifications

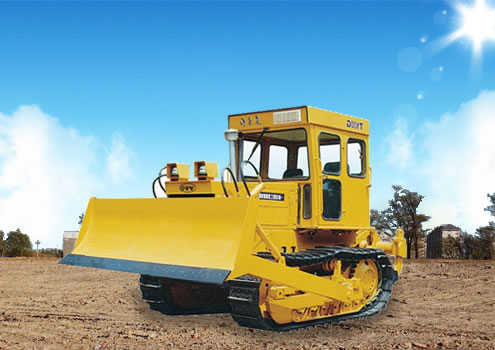

Model	T100G
Total weight(kg)	10400
Max towing force(kn)	95
Engine model	LR6A3-23
Engine rated power/speed(kw/r/min)	81/2300
Fuel consumption of the engine(g/km.h)	≤242
Engine max torque	400
Forward I-IV gears(km/h)	2.6-10.3
Reverse I-II gears(km/h)	3.7-6.7
Caterpillar track board (mm)	450
Land pressure	54.4
Overall dimension(L×W×H)(mm)	4190 ×2908×2982
Bulldozer shovel(W×H)(mm)	2908×960
Max lifting of blade(mm)	830
Max digging depth of blade(mm)	370
Towing equipment/ripper(optional)	Fixed/3-teeth

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
