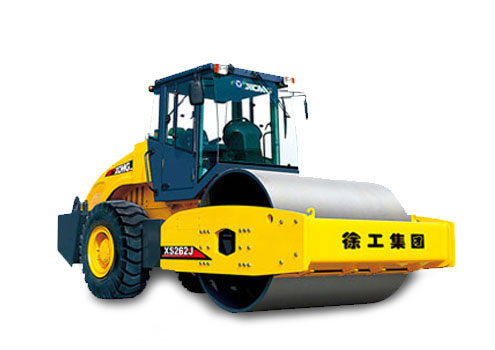

The XS262J is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG’s new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.

Technical Specifications

Item	Unit	XS262J
Operating weight	kg	26000
Weight on front drum	kg	13000
Static linear load	N/cm	582
Speed range	km/h
Speed I		2.52
Speed II		4.95
Speed III		8.1
Theoretical gradeability	%	35
Min. external turning radius	mm	6800
Steering angle	°	±33
Oscillating angle	°	±10
Vibration frequency (high/low)	Hz	32/27
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	405/290
Drum diameter	mm	1600
Drum	mm	2170
Engine model		Shanghai Diesel Engine SC8D190.2G2
Rated power @2000 r/min	kW	140
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	320

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
