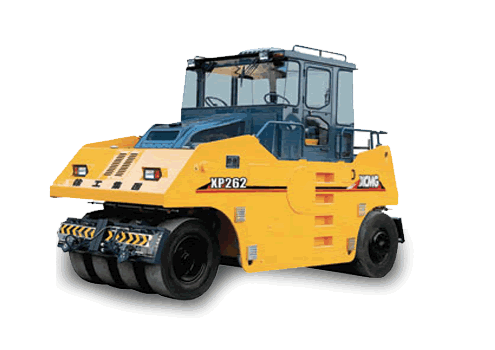

XP262 Roller

Technical Specifications

Model Unit XP262
Min. working weight kg 13900
Max. working weight kg 26000
Axle load,wheels kg 1100
Static linear load kg 11000
Theoretical gradeability % 20
Min. turning external radius mm 9000
Min. ground clearance mm 290
Tyre overlap amount mm 70
Front wheel swing range mm ±50
Compaction mm 2365
Ground pressure kPa 250~460
Wheel base mm 3840
Travel speed km/h 0~8
km/h 0~20
Tyre specification 13/80-20
Tyre tread Smooth
Tyre amount Front 4 rear 5
Engine model D6114ZG10B
Rated speed r/min 2000
Rated power kw 115
Engine oil consumption g/kW•h 224
Water tank capacity L 1100
Hydraulic oil tank capacity L 100
Fuel tank capacity L 180
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
