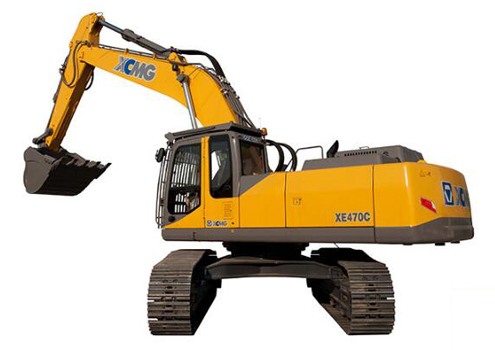

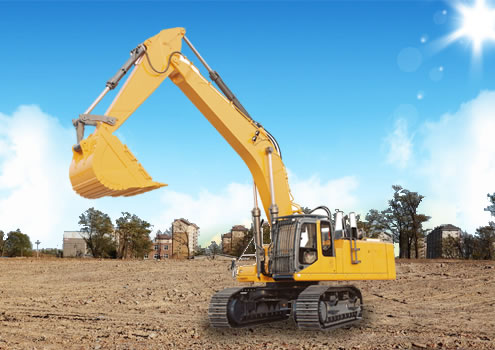

XE470C

Technical Specifications

Model Unit XE470C
Operating weight kg 46100
Standard bucket capacity 1.9~2.3
Engine Engine Model / Cummins QSM11
Direct injection /
Four strokes /
Water cooling /
Turbo charged /
Air to air intercooler /
No. of cylinders / 6
Rated power/speed kw/rpm 250/2000
Max. torque/speed N.m 1790/1400
Displacement L 11
The main performance Travel speed km/h 5.4/3.2
Swing speed r/min 9
Max. gradeability / ≥30
Ground pressure kPa 82.7
Max.Bucket digging force kN 271
Max.arm crowd force kN 231
Max.traction force kN 338
Hydraulic system Main pump / 2 Plunger pump
Rate flow of main pump L/min 2×360
Max pressure of prime relief valve MPa 31.4/34.3
Max pressure of travel system MPa 34.3
Max pressure of swing system MPa 28.4
Max pressure of pilot system MPa 3.9
Oil capacity Fuel tank capacity L 650
Hydraulic tank capacity L 360
Engine lubrication L 38
Overall dimensions A Overall length mm 12030
B Overall mm 3580
C Overall mm 3842
D Overall of upperstructure mm 2995
E Track length mm 5220
F Overall of undercarriage mm 3580
G Crawer ? 600
H Track length on ground mm 4180
I Crawer gauge mm 2392/2890
J Clearance under counter weight mm 1360
K Ground clearance mm 703
L Min.tail swing radius mm 3665
Working range A Max. digging mm 10675
B Max. dumping mm 7409
C Max. digging depth mm 7337
D 8inch horizonal digging depth mm 7117
E Max. vertical wall digging depth mm 5225
F Max. digging reach mm 11631
G Min. swing radius mm 4909
Angle of arm deflection Degree
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
