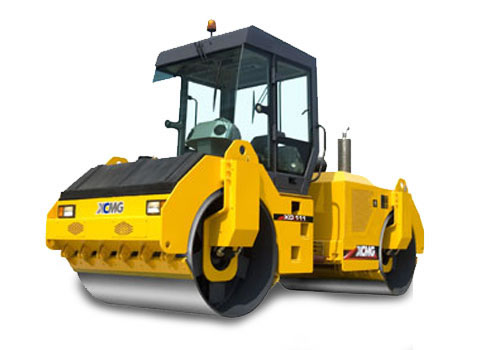

XD111E Roller

Technical Specifications

Type Unit XD111E
Operating weight (including cab) kg 11300
load on front drum kg 5650
Load on rear wheels kg 5650
Static linear load N/cm 298/298
Speed km/h 0—10
Gradeability in theory % 30
Minimum turning radius mm 4050/5950
Crab-walking distance mm 160
Minimum ground clearance mm 340
Wheel base mm 3700
Steering angle ± ° 35
Swing angle ±° 8
Vibration frequency Hz 45—48
Nominal amplitude mm 0.41/0.8
Centrifugal force kN 80/133
Model and manufacturer DEUTZ BF4M2012C
Rated rotating speed r/min 2300
Rated power kW 98
Rated oil wear g.kw/h 205
Water tank capacity L 2×450
Fuel tank capacity L 210
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
