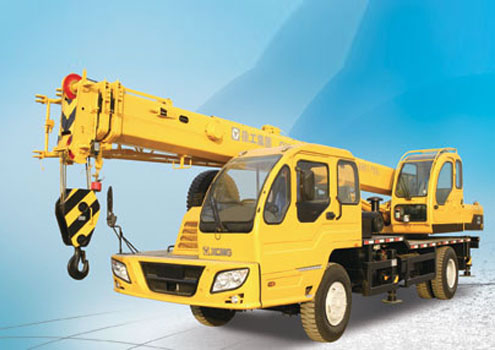

QY12B.5

Technical Specifications

Dimension Unit QY12B.5
Overall length mm 10200
Overall mm 2500
Overall mm 3200
Weight
Total weight in travel kg 16000
Front axle load kg 6000
Rear axle load kg 10000
Power
Engine model 6C215?WD415.21?SC8DK230Q3
Engine rated power kW/(r/min) 158/2200?155/2200?170/2200
790/1400?820/1400?830/1400
Engine rated torque N.m/(r/min)
Travel
Max. travel speed km/h 68?75
Min. turning diameter mm 18000
Min. ground clearance mm 260
Approach angle ° 21
Departure angle ° 10
Max. grade ability % ≥26?≥28
Fuel consumption for 100km L 30? 40
Main performance
Max. rated total lifting capacity t 12
Min. rated working radius m 3
Turning radius at turntable tail m 2.6
Max. lifting torque kN.m 428
Base boom m 9.3
Fully extended boom m 23
Fully extended boom+jib m 29.4
Longitudinal outrigger span m 4.1
Lateral outrigger span m 4.9
Working speed
Boom luffing time s 50
Boom full extension time s 75
Max. swing speed r/min 2.6
Main winch full load/no load (single rope) m/min 110
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
