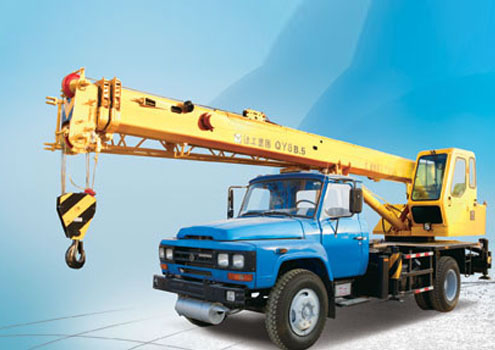

QY8B.5

Technical Specifications

Dimension Unit QY8B.5
Overall length mm 9450
Overall mm 2400
Overall mm 3180
Weight
Total weight in travel kg 10490
Front axle load kg 2800
Rear axle load kg 7690
Power
Engine model YC4E140-30
Engine rated power kW/(r/min) 105/2500
Engine rated torque N.m/(r/min) 500/1600
Travel
Max. travel speed km/h 75
Min. turning diameter mm 16000
Min. ground clearance mm 260
Approach angle ° 29
Departure angle ° 11
Max. grade ability % 28
Fuel consumption for 100km L 25.5
Main performance
Max. rated total lifting capacity t 8
Min. rated working radius m 3
Turning radius at turntable tail m 2.254
Max. lifting torque KN.m 245
Base boom m 8.2
Fully extended boom m 19
Fully extended boom+jib m 25.3
Longitudinal outrigger span m 3.825
Lateral outrigger span m 4.18
Working speed
Boom luffing time s 28
Boom full extension time s 31
Max. swing speed r/min 2.8
Main winch single-pump/dual-pump converging (single rope) m/min 53/110

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
