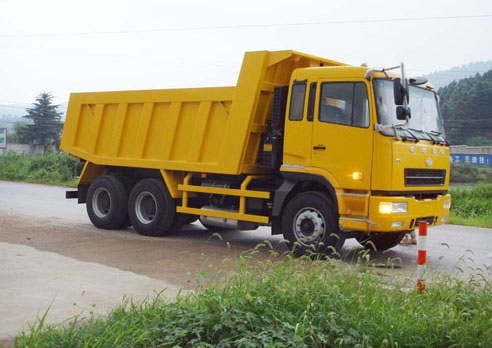

CAMC mining dump truck

Technical Specifications

1.Shanghai Longji Construction Machinery Co., Ltd.
2.Vehicle Type
Mining Dump Truck
3.Trade-mark(Brand)
Hualing Star
4.Vehicle Model
HN3250P34C6M
5.Color
Yellow
6.Engine Brand
DF Cummins
7.Engine Model
L375 20
8.Fuel Type
Diesel Oil
9.Displacement Standard
GB3847-2004
GB17691-2001
10.Displacement/ power(ml/kw)
8900/273
11.Emission Standard
Euro II
12.Steering
steering Wheel
13.Driving Model
Left-hand
14.Transmission Type
9JS150T
15.Transmission Brand
FAST GEAR
16.Tread(mm)
2065/1860/1860
17.Tire Number
10+1
18.Tire Specification
12R22.5(tubeless)
19.Number of Plate Spring(F/R)
9/12
20.Wheel Bas(mm)
3600+1350
21.Number of Axle
3
22.Overall Dimensio(L×W×H)(mm)
8080×2495×3200
23.Packing Box Inside Dimension(L×W×H)(mm)
5400×2300×1500
24.GVW(kg)
25000
25.Rated Payload (kg)
12455
26.Kerb Mass(kg)
12350
27.Ratio of Payload and Kerb Mass
1.02
28.Crew
3
29.Mini. Ground Clearance
255mm
30.Max. Speed(km/h)
75
31.Date of Production
the Update
Remarks
Including air conditioner,Mp3 player, Hitachi steering device.
We can produce the truck you need according to your special requirement.

& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
