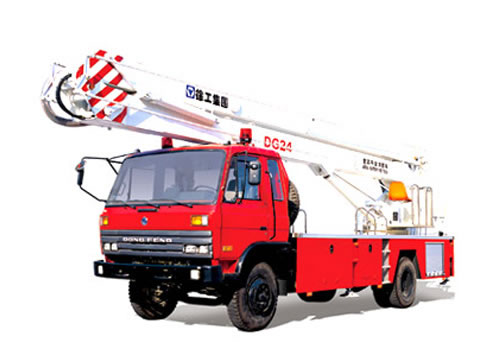

DG24 Fire Truck

Truck Technical Specifications

Main technical data in travel configuration
Category Item Unit Parameter
Dimension Overall length mm 11380
Overall mm 3640
Overall mm 2500
Wheel base mm 4700
Tread Front axle mm 1900
Rear axle mm 1800
Weight Total vehicle curb weight kg 11285
Axle load Front axle kg 3475
Rear axle kg 7810
Weight with full load kg 11510
Axle load Front axle kg 3700
Rear axle kg 7810
Max. travel speed km/h ≥85
Min. turning diameter m ≤18
Approach angle ° ≥30
Departure angle ° ≥10
Travel performance Braking distance(at 30km/h) m ≤10
Min. ground clearance mm 248
Fuel consumption of per 100km L ≤21
Max. gradeability % ≥27
Main technical data for operation
Main performance Rated working m 24.5
Max. working radius m 14.3
Platform rated load kg 270
Outrigger span m 4400×4200
Firefighting electrical water monitor Rated flow L/s 30
Injection pressure MPa ≤1.0
Water monitor reach m ≥55
Nozzle travel range ° Up and down:-15~70
Left and right:±135
Boom elevating range 1st boom ° 1~80
2nd boom ° 0~75
3rd boom ° 76~180
Working speed Boom deploying time S ≤110
Outrigger extending time S ≤30

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
