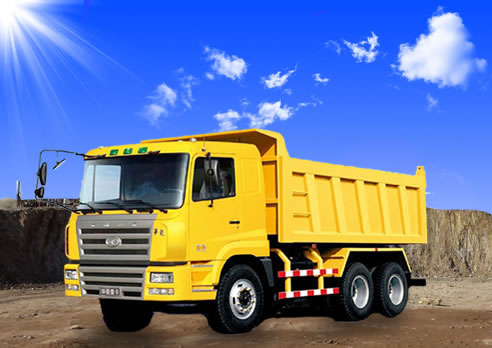

CAMC Heavy Truck Series 6×4 Dump truck

(CAMC Heavy Truck Series) Features of 6×4 Self-Unloading Truck

1.6×4 dump truck features compact structure, elegant appearance and wide field of vision. It is also very comfortable and spacious.
2.Matched with Dongfeng Cummins engine, this tipper truck enjoys the advantages of strong carrying capacity, strong power, high reliability, strong climbing ability and high speed.
3.Our 6×4 dump trucks are designed with high safety, which guarantees good protection of drivers and passengers.
4.With high efficient and oil-saving strong driving force, CAMC 6×4 tipper truck is simple and comfortable to operate.

Main Parameters

Product Name
Dump Truck
Product Model
HN3250P34C2M3
Place of Origin
Maan shan, Anhui, China
Kerb mass
12.3ton
Rated Payload
20-40ton
Drive Type
Left-Hand(optional RHD)
Drive Model
6x4
Vehicle Body Color
Yellow(optional)
Overall Dimension (LxWxH)mm
7840x2495x3240
Body interior (mm)
5200×2300×1200
Engine
Brand
Dongfeng Cummins
Model
L340 30
Max. Power (kw/r/min)
250/2200
Max. T Qrgue(Nm/r/min)
1350/1400
No. of cylinder
6
Bore x Stroke(mm)
114x145
Displacement
8900ml
Control Type
Mechanical
Air Cleaner
Dry Paper Element
Emission Standard
Euro II
Clutch
Type
Hydraulic control with air assisted
Plate diameter
dry single plate with diaphragm
outside diameter: 430 mm
Transmission
Brand
FAST GEAR
Model
RT-11509C (9-speed & 1-reverse)
Type
Mechanical
The Number of Axles
3
Rear Axle(drive axle)-Load
16000kgx2
Front Axle-Load
7500kg
Cabin type
Classic flat-roof (optional EF,CH,EH)
Cabin
With A/C, Radio, MP3,Bunk
Brake System
Service
Full air brake dual ciruit
Parking
Spring actugtor at rear wheels
Auxiliary
Exhaust break
Steering System
recirculation ball with integral power
assisted by oil
Wheelbase (mm)
3200+1350
Wheel/Tire
Type
Bias/Radial tube/Radial tubeless
Model(optional)
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
Tire number
10+1
Fuel Tank
Volume(L)
320
Body Steel Thickness
Bottom 8mm/Side 5mm
Body Lifting System
Hydraulic Central Lift
Front overhang/Rear overhang(mm)
1370/1560
Approach/Departure Angle(°)
24/25
No. of steel spring(front/rear)
9/12
Max. Speed (km/h)
75
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
