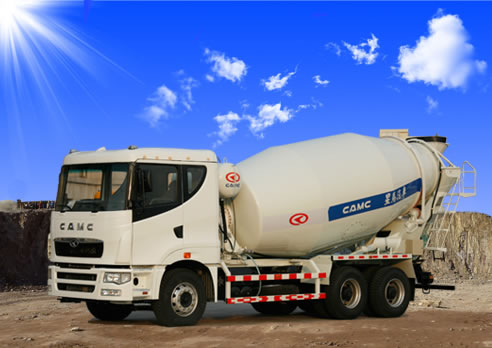

6×4 Concrete Mixer Truck

The List of main performance parameters about H08 Mixer Truck

Vehicle Model
HN5250P35C6M3GJB
HN5250P35C6M3GJB
HN5250P35C6M3GJB
HN5250P35C6M3GJB
Driving Model
6×4
6×4
6×4
6×4
Cab Model
H08 Flat Roof
H08 Flat Roof
H08 Flat Roof
H08 Flat Roof
Overall Dimension (L*W*H)(mm)
9600*2496*3900
9600*2496*3900
9600*2496*3900
9600*2496*3900
Engine Model
P11C-UH
P11C-UJ
ISME345 30
ISME385 30
Engine Brand
HINO
HINO
CUMMINS
CUMMINS
Engine Power/Speed (kw/rpm)
240/2100
259/2100
254/1900
283/1900
Gearbox Model
ZF9S1820
ZF9S1820
ZF9S1820
ZF16S1650
Frontal Axle Model
CAMC
CAMC
CAMC
CAMC
Driving Axle Model/Ratio
CAMC/5.73
CAMC/5.73
CAMC/5.73
CAMC/5.73
Tire Specifications
12R22.5
12R22.5
12R22.5
12R22.5
Wheelbase(mm)
4100+1450
4100+1450
4100+1450
4100+1450
Front Suspension(mm)
1550
1550
1550
1550
Rear Suspension (mm)
1960
1960
1960
1960
Tread(F/R) (mm)
2065/1860/1860
2065/1860/1860
2065/1860/1860
2065/1860/1860
Number of Plate Spring(F/R)
9/12
9/12
9/12
9/12
Kerb mass(kg)
12800
12800
12800
12800
GVW(kg)
25000
25000
25000
25000
Permitted Front Axle Load(kg)
7000
7000
7000
7000
Permitted Rear Axle Load(kg)
18000
18000
18000
18000
Max. Speed(km/h)
78
78
78
78
Effective Mixing Volume (Cub m)
9
9
9
9
Minimum ground clearance(mm) Under rear axle
330
330
330
330
Approaching angle(°)
22
22
22
22
Departure angle(°)
27
27
27
27
Minimum turning diameter(m)
13.6
13.6
13.6
13.6

Note:The body color,engine,gearbox,tire.,ect have options.

& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations
