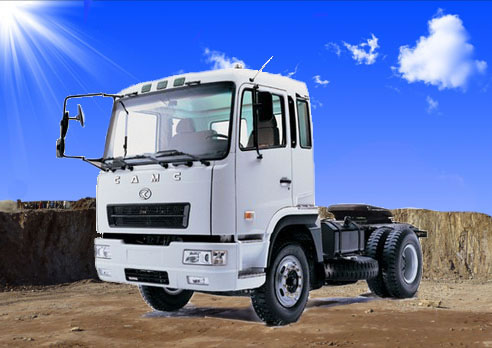

CAMC Heavy Truck Series 4x2 tractor truck

(CAMC Heavy Truck Series) CAMC 4x2 Narrow-body tractor truck

Product Name
Tractor Truck
Product Model
HN4180Z34C4M
Place of Origin
Maan shan, Anhui, China
Kerb mass
63500kg
Rated Payload
35145kgn
Drive Type
Left-Hand
Drive Model
4x2
Vehicle Body Color
White(optional)
Overall Dimension (LxWxH)mm
5790x2452x2965(3560 for High-roof cabin)
Engine
Brand
CUMMINS
Model
L345 20
Max. Power (kw/r/min)
254/2200
Displacement
8900ml
Emission Standard
Euro II
Clutch
Model
Φ430 diaphragm spring
Transmission
Brand
FAST GEAR
Model
9JS150T (9-speed & 1-reverse)
Type
twin countershaft; all synchronizer
The Number of Axles
2
Rear Axle Model
HL457
Front Axle-Load
6500kg
Cabin type
Narrow-body flat-roof (optional High-roof cabin)
Cabin
With A/C, Radio, Bunk
Brake System
Full air brake with exhaust brake (optional ABS)
Steering System
HITACHI
Wheelbase (mm)
3400
Wheel/Tire
Type
Bias/Radial tube/Radial tubeless
Model(optional)
10.00-20/11.00-20/11R22.5
Tire number
6+1
Fuel Tank
Volume(L)
320 (optional 380L)
The fifth wheel (Saddle)
JOST 50# (2 inches)/(optional 90#; 3.5inches)
The working platform
With
Diversion cover
Optional
Front overhang/Rear overhang(mm)
1370/1020
Approach/Departure Angle(°)
24/23
No. of steel spring(front/rear)
9/9+6
Max. Speed (km/h)
90
Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations.
