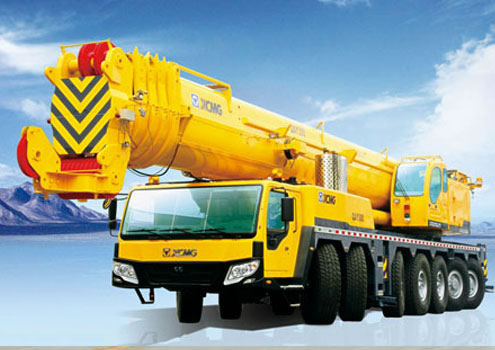

QAY300

Technical Specifications

Dimension Unit QAY300
Overall length mm 18210
Overall mm
Overall mm 4000
Weight
Total weight in travel kg 79680
Front axle load (axle 1, 2, 3) kg 11625
Rear axle load (axle 4, 5, 6, 7) kg 11201
Power
Engine model TAD722VE
OM502LA.III/5
Engine rated power kW/(r/min) 194/2100
420/1800
Engine rated torque N.m/(r/min) 2700/1080
Travel
Max. travel speed km/h 75
Min. turning diameter m 24
Min. ground clearance mm
Approach angle ° 19
Departure angle ° 19
Max. gradeability % 40
Oil consumption per 100km L
Main performance
Max. rated total lifting capacity t 300
Min. rated radius mm
Turning radius at turntable tail m
Max. lifting torque kN.m 9526
Base boom m
Fully extended boom m
Fully extended boom + jib m
Outrigger longitudinal distance m 8.7
Outrigger transverse distance m 9.2
Working speed
Boom luffing time s
Boom full stretching time s
Max. swing speed r/min
Max. speed of main winch (single rope) (no load) m/min
Max. speed of aux. winch (single rope) (no load) m/min

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
