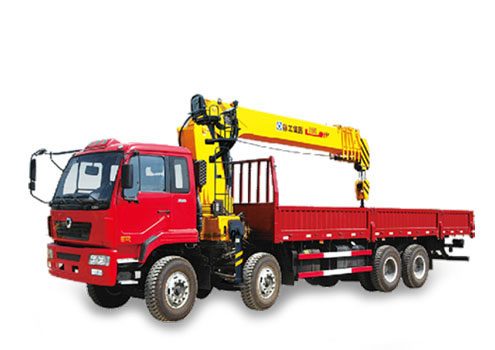

SQ14SK4Q

Technical Specifications

Model SQ14SK4Q Unit
Max Lifting Capacity 14000 kg
Max Lifting Moment 35 T.M
Recommend Power 32 kw
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Oil Tank Capacity 160 L
Rotation Angle All Rotation
Crane Weight 4800 kg
Installation Space 1300 mm
Choice of Chassis BJ1317VNPJJ-S5; NXG1310D3ZEX
SQ14SK4Q Lifting capability diagram
Working radius(m) 2.5 5 8 11 13.2 15.8
Lifting capacity(kg) 14000 6000 3500 2300 1800 1200

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
