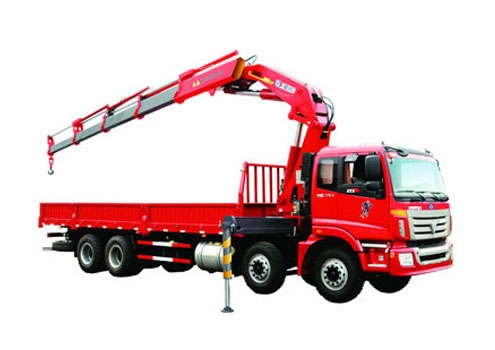

SQ16ZK4Q

Technical Specifications

Model SQ16ZK4Q Unit
Max Lifting Moment 40 t.m
Max Lifting Capacity 16000 kg
Recommend Power Needed At Recommend Oil Flow 37 kw
Max Oil Flow of Hydraulic System 63 L/min
Rated Pressure Of Hydraulic System 31.5 MPa
Oil Tank Capacity 250 L
Rotation Angle (360°) All Rotation
Crane Weight 5000 kg
Installation Space 1500 mm
Choice of Chassis NXG1310D3ZEX;BJ1317VNPJJ-S5;DFL1311A3 ;
SQ16ZK4Q Lifting capability diagram
Working radius(m) 2.5 4.098 5.898 7.748 9.618 11.518
Lifting capacity(kg) 16000 9600 6600 4850 3500 2600
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
