HB41

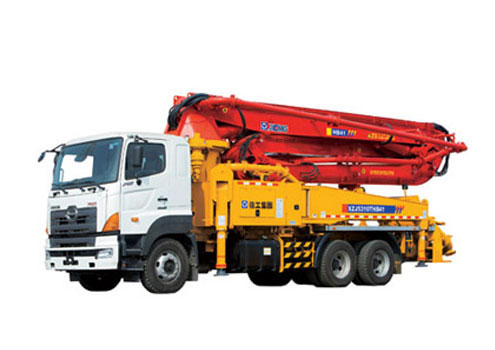

HB41 concrete pump adopts Hino FSIERV (6X4) three-axle chassis, excellent power performance and good economics. Front X type outrigger could operate on one side, and open semi-outrigger in narrow area. 5-section RZ type folded boom needs small space for boom folding and unfolding. The main vehicle pumping adopts opened delivery technology, fully hydraulic reversing technology, ·intelligent pumping damping technology, small pumping reversing impact. The concrete piston could withdraw automatically. The electrical system adopts PLC control with color display screen, showing the running parameters of the equipment. The application of the engine energy saving technology and trouble-shooting technology improves the economics, reliability and safety of the concrete pump.
It is the first 40m concrete pump with three-axle chassis in China, and the first machine adopting X type outrigger, and the first concrete pump adopting 5-section RZ type folded boom for 40-m level in China.

HB41 Technical Specifications

Travel
Category Item Unit Parameter
Chassis Model FS1ERV Actros3341 FM
Manufacturer Hino Germany BENZ VOLVO
Max. speed km/h 85 85 90
Max. gradeability 46.30% 61.90% 30%
Min. turning diameter m 17.8 19.8 18.4
Brake distance m ≤7 ≤7 ≤7
Wheelbase mm 4640+1310 4500+1350 4900+1370
Tread (front/rear) mm 2050/1855 2034/1804 2019/1834
Approach angle/departure angle ? 22/10 16/10 18/10
Min. clearance mm 245 300 270
Tyre specification 295/80R22.5 315/80r22.5 12.00R20
Engine Model E13C TL OM501LA.|||/17 D13
Output power kw/(r/min) 302/1800 300/1800 294/1800
Max. torque N.m/(r/min) 1618/1100 2000/1080 2000/1050
Displacement ¦ 12.9 11.946 12.8
Emission Standard Nation III GBIII Nation III GBIII Nation III GBIII
Other Dimension (length x x ) mm 11100x2500x3990 11060x2500x3990 11350x2500x3990
Total vehicle weight kg 30500 30600 31400
Fuel tank capacity ¦ 400 400 400
Fuel consumption per 100km ¦/100km 33.3 40 40
Pumping operation
Category ItemITEM UnitUNIT ParameterPARAMETER
Pumping system Theoretical output(high pressure/low pressure) m³/h 70/140
Concrete pumping pressure(high pressure/low pressure) Mpa 11.8/6.38
Theoretical pumping times(high pressure/low pressure) ?/min 15/27
Max. diameter of pumping concrete aggregate mm 40
Feeding mm 1530
Pumping slump range cm 12?23?
Placing boom Reach m 40.5
Reach depth m 27.5
Slewing radius m 36
Slewing angle ? ±270
1st boom stretch angle ? 90
2nd boom stretch angle ? 180
3rd boom stretch angle ? 180
4th boom stretch angle ? 240
5th boom stretch angle ? 250
Outrigger span Outrigger longitudinal span mm 7800±50
Front outrigger transverse span mm 8350±50
Rear outrigger transverse span mm 7200±50
Other Dosing type S valve
Lubricating method Automatic lubrication
Controlling method Manual/remote control
Water tank capacity | 600
Max. pressure of water pump Mpa 2

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
