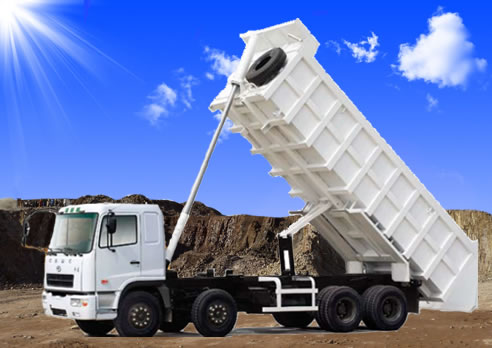

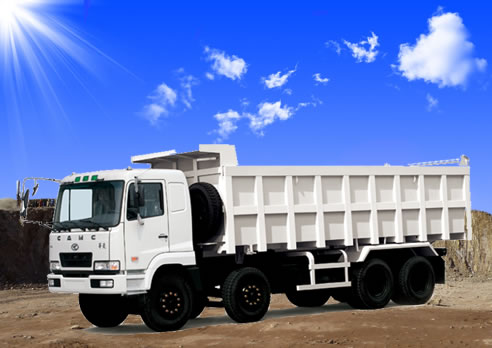

CAMC Star Series 8×4 dump truck

(CAMC Star Series) CAMC 8×4 Dump Truck with Mitsubishi style cab

Features of 8×4 Self-Unloading Truck

1. Our company has a professional R & D team for manufacturing CAMC dump trucks. They are well received by our customers all over the world.
2. This tipper truck is featured with outstanding power performance, economical efficiency, reliability and environmental protection.
3. CAMC 8×4 self-unloading truck possesses compact structure, strong load capacity, strong power, stable performance and higher market awareness.
4. This tipper truck can adapt to harsh environments of construction site and mining area.

Technical Specifications of 8×4Self-Unloading Trucks

Product Name
Dump Truck
Product Model
HN3310P34B8M3
Place of Origin
Maan shan, Anhui, China
Kerb mass
14ton
Rated Payload
40-60ton
Drive Type
Left-Hand(optional RHD)
Drive Model
8x4
Vehicle Body Color
Yellow(optional)
Overall Dimension (LxWxH)mm
9000x2495x3340
Body interior (mm)
6200×2300×1200
Engine
Brand
Dongfeng Cummins
Model
L375 30
Max. Power (kw/r/min)
375/2200
Max. T Qrgue(Nm/r/min)
1480/1400
No. of cylinder
6
Bore x Stroke(mm)
114x145
Displacement
8900ml
Control Type
Mechanical
Air Cleaner
Dry Paper Element
Emission Standard
Euro II
Clutch
Type
Hydraulic control with air assisted
Plate diameter
dry single plate with diaphragm
outside diameter: 430 mm
Transmission
Brand
FAST GEAR
Model
RT-11509C (9-speed & 1-reverse)
Type
Mechanical
The Number of Axles
4
Rear Axle(drive axle)-Load
16000kgx2
Front Axle-Load
7500kgx2
Cabin type
Classic flat-roof (optional EF,CH,EH)
Cabin
With A/C, Radio, MP3,Bunk
Brake System
Service
Full air brake dual ciruit
Parking
Spring actugtor at rear wheels
Auxiliary
Exhaust break
Steering System
recirculation ball with integral power
assisted by oil
Wheelbase (mm)
1850+2850+1350
Wheel/Tire
Type
Bias/Radial tube/Radial tubeless
Model(optional)
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
Tire number
12+1
Fuel Tank
Volume(L)
350
Body Steel Thickness
Bottom 8mm/Side 5mm
Body Lifting System
Hydraulic Front Lift
Front overhang/Rear overhang(mm)
1370/1000
Approach/Departure Angle(°)
24/23
No. of steel spring(front/rear)
9/12
Max. Speed (km/h)
75
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations
