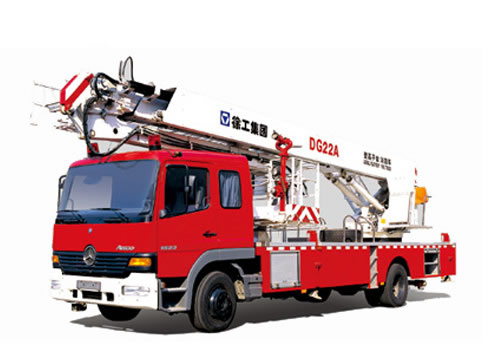

Germany Benz Atego1523 chassis; 2 telescopic booms and 1 folded boom structure featuring reasonable structure and large strength reservation coefficient; the largest load of the working platform is 300kg; electro-hydraulic proportional control technology, high efficiency in vehicle rescuing and easy operation; with 11 protecting devices, it is one of the most reliable machine in China.

Technical Specifications

Main technical data in travel configuration
Category	Item		Unit	Parameter
Dimension	Overall length		mm	10180
	Overall		mm	3650
	Overall		mm	2500
	Wheel base		mm	5360
	Weight with full load		kg	14750
	Axle load	Front axle	kg	5150
		Rear axle	kg	9600
Weight	Max. travel speed		km/h	≥90
	Min. turning diameter		m	≤19.4
	Approach angle		°	≥18
	Departure angle		°	≥10
Travel performance	Braking distance(at 30km/h)		m	≤10
	Min. ground clearance		mm	170
	Max. gradeability		%	≥25
Main technical data for operation
Main performance	Rated working		m	22
	Work platform rated load		kg	300
	Max. working radius		m	14
	Outrigger span(longitudinal×lateral)		m	5.5×5.5
	Elevating range		°	?3~80
Working speed	Boom deploying time		S	≤150
	Outrigger extending time		S	≤30
	Slewing speed		r/min	0~1.5
Fire-fighting performance	Water monitor flow		L/s	40
	Water monitor rated pressure		MPa	≤1.0
	Water monitor reach		m	≥60

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
