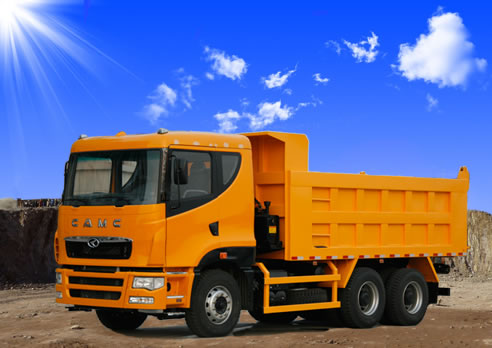

H08 6×4 Dump truck
With annual production capacity of 100,000 heavy dump trucks, at present, we have already formed the high-end series heavy dump truck 6×4 represented by Xingkaima, the middle and high-end series products represented by CAMC heavy dump truck and the middle-end series products represented by CAMC Star, which is able to satisfy the different demands of users at different levels in domestic and abroad.

The List of main performance parameters about H08 Tipper

Vehicle Model
HN3250HP35C6M3
HN3250HP35C6M3
HN3253HP35CPM3
HN3250HP35C6M3
Driving Model
6×4
6×4
6×4
6×4
Cab Model
H08 Flat Roof
H08 Flat Roof
H08 Flat Roof
H08 Flat Roof
Overall Dimension (L*W*H)(mm)
8460*2496*3360
8460*2496*3360
8460*2496*3360
8460*2496*3360
Engine Model
P11C-UH
P11C-UJ
ISLe375 30
ISME385 30
Engine Brand
HINO
HINO
CUMMINS
CUMMINS
Engine Power/Speed (kw/rpm)
240/2100
259/2100
280/1900
283/1900
Gearbox Model
ZF9S1820
ZF9S1820
ZF16S1650
ZF16S1650
Frontal Axle Model
CAMC
CAMC
CAMC
CAMC
Driving Axle Model/Ratio
CAMC/5.73
CAMC/5.73
CAMC/5.73
CAMC/5.73
Tire Specifications
12R22.5
12R22.5
12R22.5
12R22.5
Wheelbase(mm)
3600+1350
3600+1350
3600+1350
3600+1350
Front Suspension(mm)
1550
1550
1550
1550
Rear Suspension (mm)
1960
1960
1960
1960
Tread(F/R) (mm)
2065/1860/1860
2065/1860/1860
2065/1860/1860
2065/1860/1860
Number of Plate Spring(F/R)
9/12
9/12
9/12
9/12
Kerb mass(kg)
11950
11950
11950
11950
GVW(kg)
25000
25000
25000
25000
Permitted Front Axle Load(kg)
7000
7000
7000
7000
Permitted Rear Axle Load(kg)
18000
18000
18000
18000
Max. Speed(km/h)
78
78
78
78
Cargo Body Inside Size(L*W*H)(mm)
5400*2300*1250
5400*2300*1250
5400*2300*1250
5400*2300*1250
Minimum ground clearance(mm) Under rear axle
330
330
330
330
Approaching angle(°)
22
22
22
22
Departure angle(°)
27
27
27
27
Minimum turning diameter(m)
13.6
13.6
13.6
13.6
Note: The cab, engine, gearbox, tire,color,cargo body size and others have options.
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations
