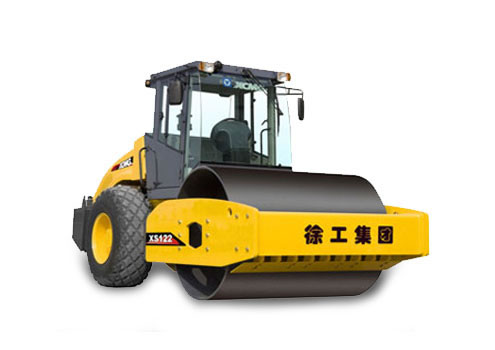

XS122 is a medium-sized hydraulic vibratory compactor developed on the basis of XS120 with better performance and appearance. Representing XCMG hydraulic vibratory compactors, the compacting performance, driving performance, operating performance, reliability, and maintenance performance represent the highest level of domestic compactors.

Technical Specifications

Type	Unit	Specifications
Operating weight	kg	12000
Weight on front drum	kg	6700
Static linear load	N/cm	308
Speed range	km/h	0~10.4
Theoretical gradeability	%	45
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±10
Vibration frequency(L/H)	Hz	30/35
Nominal amplitude(H/L)	mm	1.80/0.9
Excitation force(H/L)	kN	290/180
Drum diameter	mm	1523
Drum	mm	2130
Engine model		Cummins 4B3.9
Type		Water cooled, turbo-charged,air-air intercooling
Rated power @2200r/min	kW	93

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
