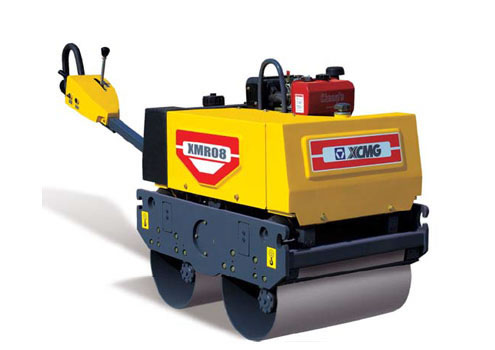

XMR08 Roller

Technical Specifications

Main technical specifications unit XMR08
Operating weight kg 800
Rolling system Tandem-type double drum
Power line Hydraulic drive
Final drive Gear drive
Brake system N/cm Hydraulic + mechnical lock
Speed km/h 0-3.6
Gradeability % 20
Centrifugal force KN 15.8
Roller mm 708
Roller diameter mm 400
Roller thichness mm 8
Frequency Hz 55
Engine model CF186F
Rated speed r/min 2600
Rated power kw 5
Fuel tank capacity L 5.5
Hydraulic tank capacity L 16
Sprinkler capacity L 40
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
